R语言|forest plot

点击上方“蓝字”，关注更多精彩

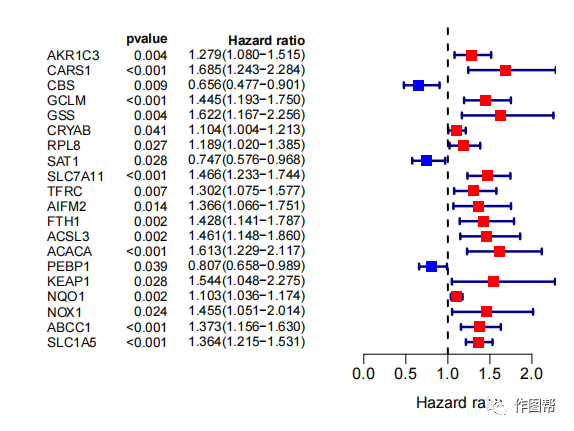

小编今天给大家分享的是foestplot包绘制组间差异比对图（森林图forest plot）相关方法。森林图(forestplot)常用于Meta分析，可用于表达统计指标的效应量和置信区间。

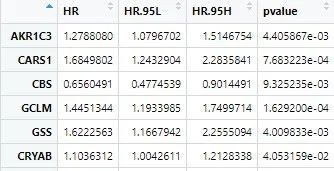

#安装包#install.packages("forestplot")#加载包library(forestplot)#输入文件inputFile="input.txt"#输出文件outFile="forest.pdf"#设置路径setwd("G:\\RStudio\\38.forest") #读取文件数据rt=read.table(inputFile,header=T,sep="\t",row.names=1,check.names=F)

#绘制森林图函数gene=rownames(rt)#读取基因列hr=sprintf("%.3f",rt$"HR")#获取HR列取小数点后3位hrLow=sprintf("%.3f",rt$"HR.95L")#获取95%置信区间取HR.95L列小数点后3位hrHigh=sprintf("%.3f",rt$"HR.95H")#获取95%置信区间HR.95H列小数点后3位pVal=ifelse(rt$pvalue<0.001, "<0.001", sprintf("%.3f", rt$pvalue)) #获取P值Hazard.ratio=paste0(hr,"(",hrLow,"-",hrHigh,")")#合并为一个数据集#输出图形#pdf(file=outFile, width = 6, height =4.5)n=nrow(rt)nRow=n+1ylim=c(1,nRow)layout(matrix(c(1,2),nc=2),width=c(3,2))#森林图左边的基因信息xlim = c(0,3)   par(mar=c(4,2,1.5,1.5))   plot(1,xlim=xlim,ylim=ylim,type="n",axes=F,xlab="",ylab="")#axes=F表示禁止生成坐标轴   text.cex=0.8 #放大0.8倍   text(0,n:1,gene,adj=0,cex=text.cex)#显示基因列信息text(1.5-0.5*0.2,n:1,pVal,adj=1,cex=text.cex);text(1.5-0.5*0.2,n+1,'pvalue',cex=text.cex,font=2,adj=1)#显示pvalue列信息   text(3,n:1,Hazard.ratio,adj=1,cex=text.cex);text(3,n+1,'Hazard ratio',cex=text.cex,font=2,adj=1,)#显示计算出的Hazard ratio列信息

#绘制森林图par(mar=c(4,1,1.5,1),mgp=c(2,0.5,0))xlim = c(0,max(as.numeric(hrLow),as.numeric(hrHigh)))plot(1,xlim=xlim,ylim=ylim,type="n",axes=F,ylab="",xaxs="i",xlab="Hazard ratio")#设置x轴的标题arrows(as.numeric(hrLow),n:1,as.numeric(hrHigh),n:1,angle=90,code=3,length=0.03,col="darkblue",lwd=2.5)abline(v=1,col="black",lty=2,lwd=2) #添加中线，设置中线的位置，颜色，类型，宽度boxcolor = ifelse(as.numeric(hr) > 1, 'red', 'blue')#设置中线的取值points(as.numeric(hr), n:1, pch = 15, col = boxcolor, cex=1.5)#pch表示点的样式，设置点的大小，颜色axis(1)#dev.off()

完整代码：library(forestplot)inputFile="input.txt"outFile="forest.pdf"setwd("E:\\forestplot") rt=read.table(inputFile,header=T,sep="\t",row.names=1,check.names=F)gene=rownames(rt)hr=sprintf("%.3f",rt$"HR")hrLow=sprintf("%.3f",rt$"HR.95L")hrHigh=sprintf("%.3f",rt$"HR.95H")pVal=ifelse(rt$pvalue<0.001, "<0.001", sprintf("%.3f", rt$pvalue)) Hazard.ratio=paste0(hr,"(",hrLow,"-",hrHigh,")")pdf(file=outFile, width = 6, height =4.5)n=nrow(rt)nRow=n+1ylim=c(1,nRow)layout(matrix(c(1,2),nc=2),width=c(3,2))xlim = c(0,3)   par(mar=c(4,2,1.5,1.5))   plot(1,xlim=xlim,ylim=ylim,type="n",axes=F,xlab="",ylab="")   text.cex=0.8    text(0,n:1,gene,adj=0,cex=text.cex)text(1.5-0.5*0.2,n:1,pVal,adj=1,cex=text.cex);text(1.5-0.5*0.2,n+1,'pvalue',cex=text.cex,font=2,adj=1)   text(3,n:1,Hazard.ratio,adj=1,cex=text.cex);text(3,n+1,'Hazard ratio',cex=text.cex,font=2,adj=1,)par(mar=c(4,1,1.5,1),mgp=c(2,0.5,0))xlim = c(0,max(as.numeric(hrLow),as.numeric(hrHigh)))plot(1,xlim=xlim,ylim=ylim,type="n",axes=F,ylab="",xaxs="i",xlab="Hazard ratio")arrows(as.numeric(hrLow),n:1,as.numeric(hrHigh),n:1,angle=90,code=3,length=0.03,col="darkblue",lwd=2.5)abline(v=1,col="black",lty=2,lwd=2)boxcolor = ifelse(as.numeric(hr) > 1, 'red', 'blue')points(as.numeric(hr), n:1, pch = 15, col = boxcolor, cex=1.5)axis(1)dev.off()

END
